Technical characteristics

Frame Range	H80~450	Power Range	0.18~1000kW
Rated Voltage	380V（Special voltage customization）	Rated Frequency	50Hz（Special frequency customization）
Efficiency Level	IE3	Poles	2、4、6、8
Protection Degree	IP55	Cooling Mode	IC411
Insulation Class	F	Operation Mode	S1
Installation Mode	B3、B5、B35、B14、B34、V1	Wiring Mode	Y/?

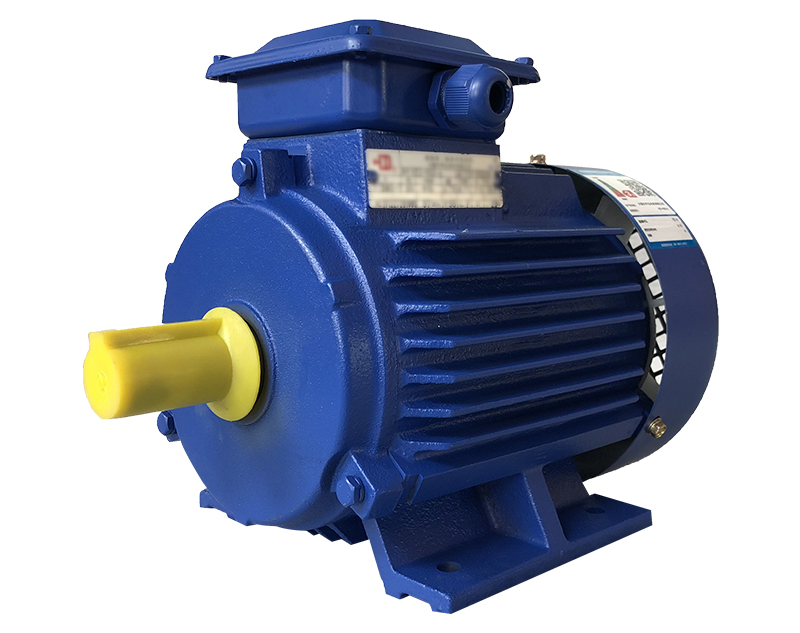

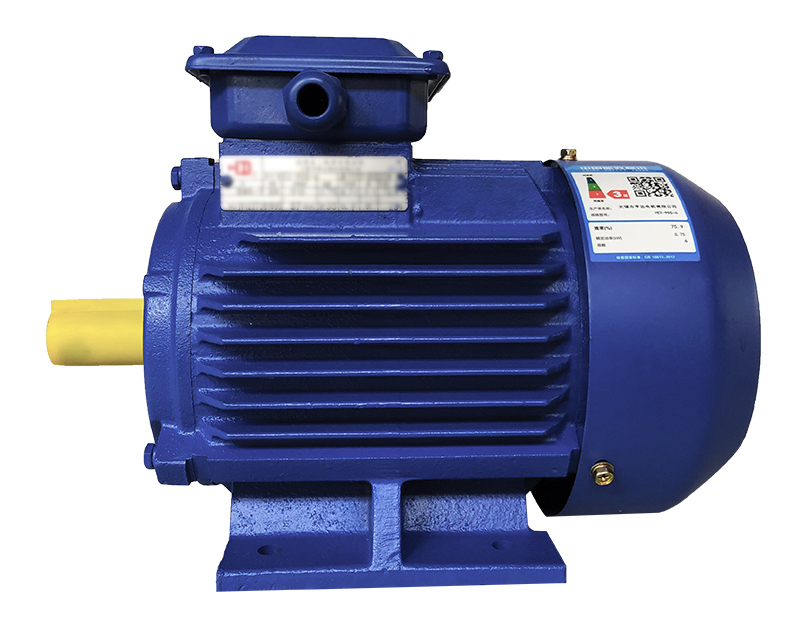

YE3 series three-phase asynchronous motor

YE3 series motor is a product designed and developed to build an energy-saving society. It has the characteristics of high efficiency, energy saving, low vibration, low noise, reliable performance, convenient installation and maintenance, etc. This series of motors are general-purpose three-phase asynchronous motors, which can be used for compressors, fans, water pumps, crushers and other mechanical equipment, as well as field cooperative power sources in petroleum, chemical industry, medicine, mines and other harsh environmental conditions.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Poles	Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor	Noise	Protection Degree	Insulation Class	Duty	Connection	Frequency	Rated Voltage
Model	Poles	kW	A	r/min	N·m	η	cosΦ	dB	Protection Degree	Insulation Class	Duty	Connection	Hz	V
YE3-80M1-2	2	0.75	1.7	2845	2.4	80.7	0.82	62	IP55	F	S1	Y	50	380
YE3-80M2-2	2	1.1	2.4	2840	3.5	82.7	0.83	62	IP55	F	S1	Y	50	380
YE3-90S-2	2	1.5	3.2	2840	4.8	84.2	0.84	67	IP55	F	S1	Y	50	380
YE3-90L-2	2	2.2	4.6	2840	7.0	85.9	0.85	67	IP55	F	S1	Y	50	380
YE3-100L-2	2	3	6.0	2860	9.6	87.1	0.87	74	IP55	F	S1	Y	50	380
YE3-112M-2	2	4	7.8	2890	12.7	88.1	0.88	77	IP55	F	S1	?	50	380
YE3-112L-2	2	5.5	10.6	2890	17.5	89.2	0.88	77	IP55	F	S1	?	50	380
YE3-132S1-2	2	5.5	10.6	2910	17.5	89.2	0.88	79	IP55	F	S1	?	50	380
YE3-132S2-2	2	7.5	14.4	2905	23.9	90.1	0.88	79	IP55	F	S1	?	50	380
YE3-132S3-2	2	9	17.2	2905	28.7	90.6	0.88	79	IP55	F	S1	?	50	380
YE3-132M-2	2	11	20.6	2905	35.0	91.2	0.89	79	IP55	F	S1	?	50	380
YE3-132L-2	2	15	27.9	2905	47.8	91.9	0.89	79	IP55	F	S1	?	50	380
YE3-160M1-2	2	11	20.6	2935	35.0	91.2	0.89	81	IP55	F	S1	?	50	380
YE3-160M2-2	2	15	27.9	2935	47.8	91.9	0.89	81	IP55	F	S1	?	50	380
YE3-160L-2	2	18.5	34.2	2935	58.9	92.4	0.89	81	IP55	F	S1	?	50	380
YE3-160L2-2	2	22	40.5	2935	70.0	92.7	0.89	81	IP55	F	S1	?	50	380
YE3-180M0-2	2	18.5	34.2	2940	58.9	92.4	0.89	83	IP55	F	S1	?	50	380
YE3-180M-2	2	22	40.5	2940	70.0	92.7	0.89	83	IP55	F	S1	?	50	380
YE3-180L1-2	2	25	45.9	2940	79.6	93.0	0.89	83	IP55	F	S1	?	50	380
YE3-180L2-2	2	30	54.9	2940	95.5	93.3	0.89	83	IP55	F	S1	?	50	380
YE3-180LX-2	2	37	67.4	2940	117.8	93.7	0.89	83	IP55	F	S1	?	50	380
YE3-200L1-2	2	30	54.9	2945	95.5	93.3	0.89	84	IP55	F	S1	?	50	380
YE3-200L2-2	2	37	67.4	2945	117.8	93.7	0.89	84	IP55	F	S1	?	50	380
YE3-200LX-2	2	45	80.8	2945	143.3	94.0	0.90	84	IP55	F	S1	?	50	380
YE3-225M-2	2	45	80.8	2950	143.3	94.0	0.90	86	IP55	F	S1	?	50	380
YE3-225M2-2	2	55	98.5	2950	175.1	94.3	0.90	86	IP55	F	S1	?	50	380
YE3-250M-2	2	55	98.5	2965	175.1	94.3	0.90	89	IP55	F	S1	?	50	380
YE3-250M2-2	2	75	133.7	2965	238.8	94.7	0.90	89	IP55	F	S1	?	50	380
YE3-280S-2	2	75	133.7	2965	238.8	94.7	0.90	91	IP55	F	S1	?	50	380
YE3-280M-2	2	90	159.9	2965	286.5	95.0	0.90	91	IP55	F	S1	?	50	380
YE3-280L-2	2	110	195.1	2965	350.2	95.2	0.90	91	IP55	F	S1	?	50	380
YE3-280M2-2	2	110	195.1	2965	350.2	95.2	0.90	91	IP55	F	S1	?	50	380
YE3-280MX-2	2	132	233.6	2965	420.2	95.4	0.90	91	IP55	F	S1	?	50	380
YE3-315S-2	2	110	195.1	2975	350.2	95.2	0.90	92	IP55	F	S1	?	50	380
YE3-315M-2	2	132	233.6	2975	420.2	95.4	0.90	92	IP55	F	S1	?	50	380
YE3-315L1-2	2	160	279.4	2975	509.3	95.6	0.91	92	IP55	F	S1	?	50	380
YE3-315L12-2	2	185	322.8	2975	588.9	95.7	0.91	92	IP55	F	S1	?	50	380
YE3-315L2-2	2	200	348.6	2975	636.7	95.8	0.91	92	IP55	F	S1	?	50	380
YE3-315LX1-2	2	220	383.4	2975	700.3	95.8	0.91	92	IP55	F	S1	?	50	380
YE3-315LX2-2	2	250	435.7	2975	795.8	95.8	0.91	92	IP55	F	S1	?	50	380
YE3-355M0-2	2	220	383.4	2970	700.3	95.8	0.91	100	IP55	F	S1	?	50	380
YE3-355M-2	2	250	435.7	2970	795.8	95.8	0.91	100	IP55	F	S1	?	50	380
YE3-355L0-2	2	280	488.0	2970	891.3	95.8	0.91	100	IP55	F	S1	?	50	380
YE3-355L-2	2	315	549.0	2970	1002.8	95.8	0.91	100	IP55	F	S1	?	50	380
YE3-355X1-2	2	355	625.6	2970	1130.1	95.8	0.90	100	IP55	F	S1	?	50	380
YE3-355X2-2	2	375	660.8	2970	1193.8	95.8	0.90	100	IP55	F	S1	?	50	380
YE3-400M1-2	2	355	625.6	2985	1130.1	95.8	0.90	97	IP55	F	S1	?	50	380
YE3-400M2-2	2	400	704.9	2985	1273.3	95.8	0.90	97	IP55	F	S1	?	50	380
YE3-400M3-2	2	450	793.0	2985	1432.5	95.8	0.90	97	IP55	F	S1	?	50	380
YE3-400L1-2	2	500	881.1	2985	1591.7	95.8	0.90	97	IP55	F	S1	?	50	380
YE3-400L2-2	2	560	976.0	2985	1782.7	95.8	0.91	97	IP55	F	S1	?	50	380
YE3-400L3-2	2	630	1098.0	2985	2005.5	95.8	0.91	97	IP55	F	S1	?	50	380
YE3-450X1-2	2	710	1237.4	2990	2260.2	95.8	0.91	97	IP55	F	S1	?	50	380
YE3-450X2-2	2	800	1394.3	2990	2546.7	95.8	0.91	97	IP55	F	S1	?	50	380
YE3-450X3-2	2	900	1568.6	2990	2865.0	95.8	0.91	97	IP55	F	S1	?	50	380
YE3-450X4-2	2	1000	1723.9	2990	3183.3	95.8	0.92	97	IP55	F	S1	?	50	380
YE3-80M1-4	4	0.55	1.4	1380	3.5	80.8	0.75	56	IP55	F	S1	Y	50	380
YE3-80M2-4	4	0.75	1.8	1380	4.8	82.5	0.75	56	IP55	F	S1	Y	50	380
YE3-90S-4	4	1.1	2.6	1390	7.0	84.1	0.76	59	IP55	F	S1	Y	50	380
YE3-90L-4	4	1.5	3.5	1390	9.6	85.3	0.77	59	IP55	F	S1	Y	50	380
YE3-100L1-4	4	2.2	4.8	1410	14.0	86.7	0.81	64	IP55	F	S1	Y	50	380
YE3-100L2-4	4	3	6.3	1410	19.1	87.7	0.82	64	IP55	F	S1	Y	50	380
YE3-112M-4	4	4	8.4	1440	25.5	88.6	0.82	65	IP55	F	S1	?	50	380
YE3-112L-4	4	5.5	11.2	1440	35.0	89.6	0.83	64	IP55	F	S1	?	50	380
YE3-132S-4	4	5.5	11.2	1445	35.0	89.6	0.83	71	IP55	F	S1	?	50	380
YE3-132M-4	4	7.5	15.0	1445	47.8	90.4	0.84	71	IP55	F	S1	?	50	380
YE3-132M2-4	4	9	17.9	1445	57.3	90.9	0.84	71	IP55	F	S1	?	50	380
YE3-132L1-4	4	11	21.5	1445	70.0	91.4	0.85	71	IP55	F	S1	?	50	380
YE3-132L2-4	4	15	28.8	1445	95.5	92.1	0.86	71	IP55	F	S1	?	50	380
YE3-160M-4	4	11	21.5	1470	70.0	91.4	0.85	73	IP55	F	S1	?	50	380
YE3-160M1-4	4	13	25.3	1470	82.8	91.8	0.85	73	IP55	F	S1	?	50	380
YE3-160L-4	4	15	28.8	1470	95.5	92.1	0.86	73	IP55	F	S1	?	50	380
YE3-160L2-4	4	18.5	35.3	1470	117.8	92.6	0.86	73	IP55	F	S1	?	50	380
YE3-180M0-4	4	17	32.5	1470	108.2	92.4	0.86	76	IP55	F	S1	?	50	380
YE3-180M-4	4	18.5	35.3	1470	117.8	92.6	0.86	76	IP55	F	S1	?	50	380
YE3-180L0-4	4	20.5	39.0	1470	130.5	92.8	0.86	76	IP55	F	S1	?	50	380
YE3-180L-4	4	22	41.8	1470	140.1	93.0	0.86	76	IP55	F	S1	?	50	380
YE3-180L2-4	4	30	56.6	1470	191.0	93.6	0.86	76	IP55	F	S1	?	50	380
YE3-180LX-4	4	37	69.6	1470	235.6	93.9	0.86	76	IP55	F	S1	?	50	380
YE3-200L-4	4	30	56.6	1470	191.0	93.6	0.86	76	IP55	F	S1	?	50	380
YE3-200L2-4	4	37	69.6	1470	235.6	93.9	0.86	76	IP55	F	S1	?	50	380
YE3-225S-4	4	37	69.6	1475	235.6	93.9	0.86	78	IP55	F	S1	?	50	380
YE3-225M-4	4	45	84.4	1475	286.5	94.2	0.86	78	IP55	F	S1	?	50	380
YE3-225M2-4	4	55	102.7	1475	350.2	94.6	0.86	78	IP55	F	S1	?	50	380
YE3-250M-4	4	55	102.7	1475	350.2	94.6	0.86	79	IP55	F	S1	?	50	380
YE3-250M2-4	4	75	136.3	1475	477.5	95.0	0.88	79	IP55	F	S1	?	50	380
YE3-250XM-4	4	75	136.3	1475	477.5	95.0	0.88	79	IP55	F	S1	?	50	380
YE3-250MX-4	4	90	163.2	1475	573.0	95.2	0.88	79	IP55	F	S1	?	50	380
YE3-280S-4	4	75	136.3	1485	477.5	95.0	0.88	80	IP55	F	S1	?	50	380
YE3-280M-4	4	90	163.2	1485	573.0	95.2	0.88	80	IP55	F	S1	?	50	380
YE3-280M1-4	4	110	196.8	1485	700.3	95.4	0.89	80	IP55	F	S1	?	50	380
YE3-280MX-4	4	132	235.7	1485	840.4	95.6	0.89	80	IP55	F	S1	?	50	380
YE3-315S-4	4	110	196.8	1485	700.3	95.4	0.89	88	IP55	F	S1	?	50	380
YE3-315M-4	4	132	235.7	1485	840.4	95.6	0.89	88	IP55	F	S1	?	50	380
YE3-315L1-4	4	160	285.1	1485	1018.7	95.8	0.89	88	IP55	F	S1	?	50	380
YE3-315L12-4	4	185	329.3	1485	1177.8	95.9	0.89	88	IP55	F	S1	?	50	380
YE3-315L2-4	4	200	351.7	1485	1273.3	96.0	0.90	88	IP55	F	S1	?	50	380
YE3-315LX1-4	4	220	386.9	1485	1400.7	96.0	0.90	88	IP55	F	S1	?	50	380
YE3-315LX2-4	4	250	439.6	1485	1591.7	96.0	0.90	88	IP55	F	S1	?	50	380
YE3-355M01-4	4	220	386.9	1490	1400.7	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-355M-4	4	250	439.6	1490	1591.7	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-355M2-4	4	280	492.4	1490	1782.7	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-355L-4	4	315	553.9	1490	2005.5	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-355L2-4	4	355	638.5	1490	2260.2	96.0	0.88	95	IP55	F	S1	?	50	380
YE3-355X1-4	4	355	638.5	1490	2260.2	96.0	0.88	95	IP55	F	S1	?	50	380
YE3-355X2-4	4	375	674.4	1490	2387.5	96.0	0.88	95	IP55	F	S1	?	50	380
YE3-400M1-4	4	355	638.5	1490	2260.2	96.0	0.88	93	IP55	F	S1	?	50	380
YE3-400M2-4	4	400	719.4	1490	2546.7	96.0	0.88	93	IP55	F	S1	?	50	380
YE3-400M3-4	4	450	809.3	1490	2865.0	96.0	0.88	93	IP55	F	S1	?	50	380
YE3-400L1-4	4	500	899.3	1490	3183.3	96.0	0.88	93	IP55	F	S1	?	50	380
YE3-400L2-4	4	560	995.9	1490	3565.3	96.0	0.89	93	IP55	F	S1	?	50	380
YE3-400L3-4	4	630	1120.3	1490	4011.0	96.0	0.89	93	IP55	F	S1	?	50	380
YE3-450X1-4	4	710	1262.6	1490	4520.3	96.0	0.89	95	IP55	F	S1	?	50	380
YE3-450X2-4	4	800	1406.8	1490	5093.3	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-450X3-4	4	900	1582.7	1490	5730.0	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-450X4-4	4	1000	1758.6	1490	6366.7	96.0	0.90	95	IP55	F	S1	?	50	380
YE3-80M1-6	6	0.37	1.1	900	3.5	73.5	0.70	54	IP55	F	S1	Y	50	380
YE3-80M2-6	6	0.55	1.5	900	5.3	77.2	0.72	54	IP55	F	S1	Y	50	380
YE3-90S-6	6	0.75	2.0	915	7.2	78.9	0.71	57	IP55	F	S1	Y	50	380
YE3-90L-6	6	1.1	2.8	915	10.5	81.0	0.73	57	IP55	F	S1	Y	50	380
YE3-100L-6	6	1.5	3.8	920	14.3	82.5	0.73	61	IP55	F	S1	Y	50	380
YE3-112M-6	6	2.2	5.4	940	21.0	84.3	0.74	65	IP55	F	S1	Y	50	380
YE3-132S-6	6	3	7.2	960	28.7	85.6	0.74	69	IP55	F	S1	Y	50	380
YE3-132M1-6	6	4	9.5	960	38.2	86.8	0.74	69	IP55	F	S1	?	50	380
YE3-132M2-6	6	5.5	12.7	960	52.5	88.0	0.75	69	IP55	F	S1	?	50	380
YE3-160M-6	6	7.5	16.2	970	71.6	89.1	0.79	73	IP55	F	S1	?	50	380
YE3-160L-6	6	11	23.1	970	105.1	90.3	0.80	73	IP55	F	S1	?	50	380
YE3-180L-6	6	15	30.9	970	143.3	91.2	0.81	73	IP55	F	S1	?	50	380
YE3-180L2-6	6	17	34.9	970	162.4	91.5	0.81	73	IP55	F	S1	?	50	380
YE3-180L3-6	6	20.5	41.8	970	195.8	92.0	0.81	73	IP55	F	S1	?	50	380
YE3-200L1-6	6	18.5	37.8	975	176.7	91.7	0.81	73	IP55	F	S1	?	50	380
YE3-200L2-6	6	22	44.8	975	210.1	92.2	0.81	73	IP55	F	S1	?	50	380
YE3-225M-6	6	30	59.1	980	286.5	92.9	0.83	74	IP55	F	S1	?	50	380
YE3-250M-6	6	37	71.7	980	353.4	93.3	0.84	76	IP55	F	S1	?	50	380
YE3-280S-6	6	45	85.8	980	429.8	93.7	0.85	78	IP55	F	S1	?	50	380
YE3-280M-6	6	55	103.3	980	525.3	94.1	0.86	78	IP55	F	S1	?	50	380
YE3-315S-6	6	75	143.4	985	716.3	94.6	0.84	83	IP55	F	S1	?	50	380
YE3-315M-6	6	90	169.5	985	859.5	94.9	0.85	83	IP55	F	S1	?	50	380
YE3-315L1-6	6	110	206.8	985	1050.5	95.1	0.85	83	IP55	F	S1	?	50	380
YE3-315L2-6	6	132	244.5	985	1260.6	95.4	0.86	83	IP55	F	S1	?	50	380
YE3-355M1-6	6	160	295.7	990	1528.0	95.6	0.86	85	IP55	F	S1	?	50	380
YE3-355M12-6	6	185	337.6	990	1766.8	95.7	0.87	85	IP55	F	S1	?	50	380
YE3-355M2-6	6	200	364.6	990	1910.0	95.8	0.87	85	IP55	F	S1	?	50	380
YE3-355M3-6	6	220	401.1	990	2101.0	95.8	0.87	85	IP55	F	S1	?	50	380
YE3-355L-6	6	250	455.7	990	2387.5	95.8	0.87	85	IP55	F	S1	?	50	380
YE3-355L2-6	6	280	510.4	990	2674.0	95.8	0.87	85	IP55	F	S1	?	50	380
YE3-355X1-6	6	315	609.3	990	3008.3	95.8	0.82	85	IP55	F	S1	?	50	380
YE3-400M1-6	6	315	609.3	990	3008.3	95.8	0.82	92	IP55	F	S1	?	50	380
YE3-400M2-6	6	355	686.6	990	3390.3	95.8	0.82	92	IP55	F	S1	?	50	380
YE3-400L1-6	6	400	764.3	990	3820.0	95.8	0.83	92	IP55	F	S1	?	50	380
YE3-400L2-6	6	450	859.9	990	4297.5	95.8	0.83	92	IP55	F	S1	?	50	380
YE3-400L3-6	6	500	955.4	990	4775.0	95.8	0.83	92	IP55	F	S1	?	50	380
YE3-450X0-6	6	560	1057.3	990	5348.0	95.8	0.84	95	IP55	F	S1	?	50	380
YE3-450X1-6	6	630	1189.5	990	6016.5	95.8	0.84	95	IP55	F	S1	?	50	380
YE3-450X2-6	6	670	1265.0	990	6398.5	95.8	0.84	95	IP55	F	S1	?	50	380
YE3-450X3-6	6	710	1340.5	990	6780.5	95.8	0.84	95	IP55	F	S1	?	50	380
YE3-80M1-8	8	0.18	0.8	665	2.3	58.7	0.61	52	IP55	F	S1	Y	50	380
YE3-80M2-8	8	0.25	1.0	665	3.2	64.1	0.61	52	IP55	F	S1	Y	50	380
YE3-90S-8	8	0.37	1.3	685	4.7	69.3	0.61	56	IP55	F	S1	Y	50	380
YE3-90L-8	8	0.55	1.9	685	7.0	73.0	0.61	56	IP55	F	S1	Y	50	380
YE3-100L1-8	8	0.75	2.3	705	9.6	75.0	0.67	59	IP55	F	S1	Y	50	380
YE3-100L2-8	8	1.1	3.1	705	14.0	77.7	0.69	59	IP55	F	S1	Y	50	380
YE3-112M-8	8	1.5	4.1	705	19.1	79.7	0.70	61	IP55	F	S1	Y	50	380
YE3-132S-8	8	2.2	5.7	720	28.0	81.9	0.71	64	IP55	F	S1	Y	50	380
YE3-132M-8	8	3	7.5	720	38.2	83.5	0.73	64	IP55	F	S1	Y	50	380
YE3-160M1-8	8	4	9.8	720	50.9	84.8	0.73	68	IP55	F	S1	?	50	380
YE3-160M2-8	8	5.5	13.1	720	70.0	86.2	0.74	68	IP55	F	S1	?	50	380
YE3-160L-8	8	7.5	17.4	720	95.5	87.3	0.75	68	IP55	F	S1	?	50	380
YE3-160L-8	8	9	20.9	870	114.6	87.3	0.75	68	IP55	F	S1	?	60	440
YE3-180L-8	8	11	25.2	730	140.1	88.6	0.75	70	IP55	F	S1	?	50	380
YE3-200L-8	8	15	33.5	730	191.0	89.6	0.76	73	IP55	F	S1	?	50	380
YE3-225S-8	8	18.5	41.0	735	235.6	90.1	0.76	73	IP55	F	S1	?	50	380
YE3-225M-8	8	22	47.3	735	280.1	90.6	0.78	73	IP55	F	S1	?	50	380
YE3-250M-8	8	30	63.2	730	382.0	91.3	0.79	75	IP55	F	S1	?	50	380
YE3-280S-8	8	37	77.5	735	471.1	91.8	0.79	76	IP55	F	S1	?	50	380
YE3-280M-8	8	45	93.9	735	573.0	92.2	0.79	76	IP55	F	S1	?	50	380
YE3-315S-8	8	55	111.5	745	700.3	92.5	0.81	82	IP55	F	S1	?	50	380
YE3-315M-8	8	75	151.1	745	955.0	93.1	0.81	82	IP55	F	S1	?	50	380
YE3-315L1-8	8	90	178.5	745	1146.0	93.4	0.82	82	IP55	F	S1	?	50	380
YE3-315L2-8	8	110	217.5	745	1400.7	93.7	0.82	82	IP55	F	S1	?	50	380
YE3-315L3-8	8	132	260.2	745	1680.8	94.0	0.82	82	IP55	F	S1	?	50	380
YE3-355M1-8	8	132	260.2	745	1680.8	94.0	0.82	89	IP55	F	S1	?	50	380
YE3-355M2-8	8	160	314.4	745	2037.3	94.3	0.82	89	IP55	F	S1	?	50	380
YE3-355M3-8	8	185	358.4	745	2355.7	94.5	0.83	89	IP55	F	S1	?	50	380
YE3-355L-8	8	200	387.0	745	2546.7	94.6	0.83	89	IP55	F	S1	?	50	380
YE3-355L2-8	8	220	425.7	745	2801.3	94.6	0.83	89	IP55	F	S1	?	50	380
YE3-355X1-8	8	250	501.9	745	3183.3	94.6	0.80	89	IP55	F	S1	?	50	380
YE3-355X2-8	8	315	632.4	745	4011.0	94.6	0.80	89	IP55	F	S1	?	50	380
YE3-400M1-8	8	250	501.9	745	3183.3	94.6	0.80	91	IP55	F	S1	?	50	380
YE3-400M2-8	8	280	562.1	745	3565.3	94.6	0.80	91	IP55	F	S1	?	50	380
YE3-400L1-8	8	315	632.4	745	4011.0	94.6	0.80	91	IP55	F	S1	?	50	380
YE3-400L2-8	8	355	712.7	745	4520.3	94.6	0.80	91	IP55	F	S1	?	50	380
YE3-400L3-8	8	400	803.1	745	5093.3	94.6	0.80	91	IP55	F	S1	?	50	380
YE3-450X1-8	8	450	892.3	745	5730.0	94.6	0.81	93	IP55	F	S1	?	50	380
YE3-450X2-8	8	500	991.4	745	6366.7	94.6	0.81	93	IP55	F	S1	?	50	380
YE3-450X3-8	8	560	1110.4	745	7130.7	94.6	0.81	93	IP55	F	S1	?	50	380
YE3-450X4-8	8	630	1249.2	745	8022.0	94.6	0.81	93	IP55	F	S1	?	50	380

Contact Information

4000-999-510
